What Is Laminated Glass? The Layer That Holds Broken Glass Together
Quick Answer: Laminated glass is two or more layers of glass permanently bonded to a thin plastic interlayer, usually PVB or EVA. When it breaks, the fragments stick to that interlayer instead of falling away, so the pane cracks but stays in its frame. That held-together behavior is why laminated glass is used for safety, security, sound control, and blocking UV. Tempered glass is different: it is a single pane heat-treated for strength that crumbles into small pebbles when it fails, rather than holding together.
Slam a car door hard enough, and the windshield stays put, even after a rock has spidered it on the highway. That windshield is not one piece of glass. It is a sandwich, and the filling is what keeps the whole thing from falling into your lap. That construction has a name most homeowners never learn until they are standing in a showroom choosing glass for a skylight, a railing, or a low window near a stair.
Laminated glass is built to break differently than any single pane can. Knowing what it is, how it is put together, and how it stacks up against tempered glass will help you understand why one spec sheet calls for laminated and another calls for tempered, and why a few demanding spots ask for both at once.
What Laminated Glass Actually Is
At its core, laminated glass is a bonded assembly, not a single sheet. Two panes of glass are fused to a plastic film that runs between them like the meat in a sandwich. The most common film is polyvinyl butyral, known as PVB. Some products, especially in showers and certain solar applications, use ethylene-vinyl acetate, or EVA, instead. Thicker or higher-security builds may stack three, four, or more layers of glass with an interlayer between each one.
The glass on either side can be ordinary annealed glass, heat-strengthened glass, or fully tempered glass, depending on what the job demands. What makes the assembly laminated is not the glass itself but the plastic bonded inside it. That interlayer is the working part. When people say a pane is laminated, they mean it carries this internal film that keeps the whole unit acting as one piece long after the glass has cracked.
The Sandwich, Layer by Layer: Picture the cross-section from the outside in: a face of glass, then the interlayer, then a second face of glass. The interlayer is thin, often a fraction of a millimeter for a basic window, but it can be built up much thicker for impact and security work. Its thickness is one of the main levers a fabricator pulls to change how tough the finished pane is and how much sound or force it can take.
How Laminated Glass Is Made
Laminating glass is a controlled bonding process, not a coating you can brush on. The glass sheets are cleaned, then the plastic interlayer is laid between them to build the stack. That stack passes through rollers and gentle heat to press out air and tack the layers together into what fabricators call a pre-laminate.
The real bond happens under heat and pressure at the same time. The pre-laminate goes into an autoclave, a sealed vessel that raises both temperature and pressure well above room conditions. Under that combination, the interlayer softens, flows into full contact with each glass face, and cures into a clear, permanent bond. Done right, the plastic all but disappears optically, so the finished pane looks like ordinary clear glass while behaving nothing like it under impact.
What the Interlayer Does
The interlayer is the reason laminated glass exists, and it earns its keep in four separate ways.
Holds the Shards: The headline job is fragment retention. When something cracks a laminated pane, the broken glass bonds to the plastic and stays roughly in place. You get a spidered pane that is still standing in its frame instead of a shower of falling pieces. That is why an object thrown at a laminated storefront makes a hole but rarely an open doorway, and why a cracked windshield keeps its shape.
Blocks Ultraviolet Light: A standard PVB interlayer screens out roughly 99 percent of ultraviolet light. That matters for anything sitting behind the glass: hardwood floors, artwork, upholstery, and window displays all fade far more slowly. This UV screening comes from the plastic layer itself, so it holds whether the glass is clear or lightly tinted.
Dampens Sound: The plastic layer is softer than glass, and it does not carry vibration the way a rigid pane does. Sound waves hitting a laminated unit lose energy in that flexible middle, so less noise passes through. Laminated glass is a common upgrade for rooms that face traffic, flight paths, or a busy street, and for recording or conference spaces where quiet is the point.
Resists Forced Entry: Because the glass stays bonded to the plastic, breaking through a laminated pane takes sustained, noisy effort rather than one clean blow. An intruder can crack the outer face and still be stopped by an interlayer that refuses to tear cleanly. Security-rated laminated glass thickens the interlayer and adds glass plies to stretch that resistance into minutes.
Laminated vs. Tempered Glass
Both laminated and tempered glass count as safety glass, but they get there by opposite strategies, and the difference shows the moment either one breaks.
Tempered glass is a single pane put through a second heat cycle. It is reheated near its softening point, then rapidly cooled so the surfaces lock into compression and the core into tension. That built-in stress makes it several times stronger than ordinary glass against impact and bending. When it finally does fail, the stored energy releases all at once and the entire pane bursts into small, blunt pebbles that fall away. The pieces are far less likely to cause deep cuts, which is the whole safety argument for tempered glass.
Laminated glass takes the opposite approach. It does not rely on being harder to break; it relies on staying together after it breaks. A laminated pane can crack from a solid hit, but the interlayer holds the fragments and the unit keeps standing. One type clears itself out of the frame safely; the other refuses to leave the frame at all.
That split drives where each one belongs. Tempered glass suits spots where a person might fall or walk into the pane, and you want it gone and harmless: shower and tub enclosures, many glass doors, and low windows. Laminated glass suits spots where a falling or open pane would itself be the danger, or where you need sound, UV, or security performance the tempered pane cannot offer on its own.
When Both Are Combined: Some demanding jobs use a laminated pane built from tempered glass plies, sometimes called tempered-laminated glass. Overhead glazing is the classic case. A skylight or a glass floor wants the crumble-safe behavior of tempered glass and the stay-in-place behavior of lamination, so nobody underneath is hit by falling pebbles. Combining both buys strength and fragment retention in one unit.
Where Each Type Is Required or Preferred
Certain locations lean hard toward one type. Laminated glass is standard in automotive windshields, where a driver must not be showered in glass or ejected through the opening. It is preferred for skylights and any overhead glazing, for storefronts and display windows that need break-in resistance, and for impact-rated assemblies in high-wind and coastal construction, where a pane has to survive flying debris and stay in the wall.
Sound-sensitive rooms favor laminated glass for its noise damping. Low windows, sidelights next to doors, and glass near stairs and landings often call for a safety-glass product, and laminated fills that role where its held-together behavior is the safer failure mode. Tempered glass, meanwhile, remains the workhorse for shower and tub enclosures, frameless shower doors, and many interior glass doors.
Safety-glazing requirements for hazardous locations, near doors, in wet areas, at low heights, and overhead, are code-driven and vary by jurisdiction and by the specifics of the opening. A qualified glass professional reads the location against the current local rules rather than guessing, so it pays to have the pane specified by someone who does this daily.
Laminated Glass in Showers, Railings, and Windows

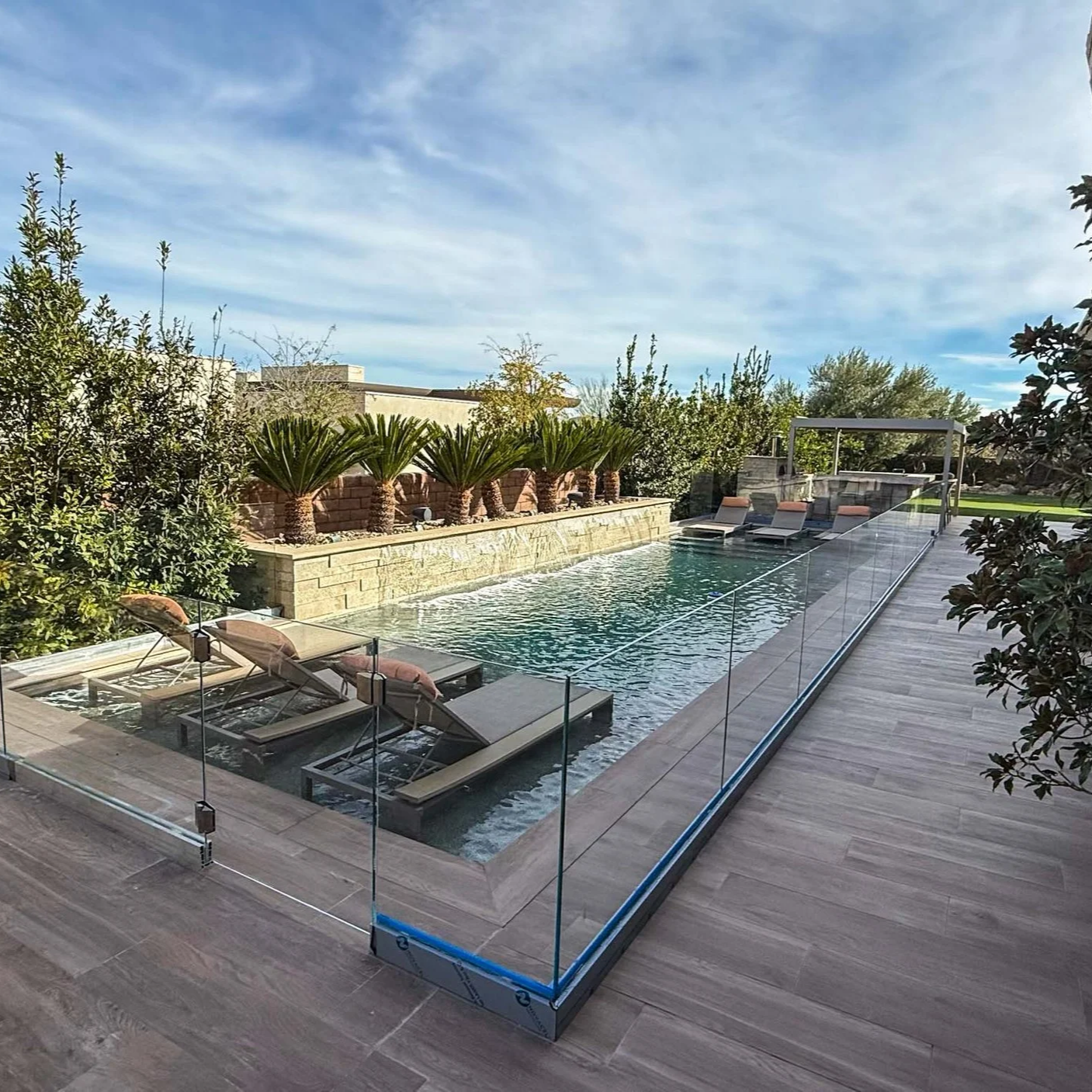

Around the home, laminated glass shows up in three places worth knowing. In showers, a designer chooses a laminated panel or a laminated-tempered build for extra reassurance that a broken enclosure will stay standing rather than clear out, though tempered remains the more common shower choice. In glass railings and guards, lamination is often required outright, because a railing that vanishes when it breaks is exactly the failure a guard is meant to prevent. The interlayer keeps a cracked panel in place while it is replaced.
In windows, laminated glass is the upgrade you reach for when a plain insulated unit is not enough: a bedroom facing a loud road, a ground-floor window that needs break-in resistance, or a room full of furnishings you want protected from fading. Laminated glass can be built into an insulated unit so one window delivers sound control, UV screening, and the thermal performance of a sealed dual-pane unit.
Broken glass of any kind is a laceration hazard. Tempered glass in particular cannot be cut, drilled, or ground after tempering without shattering, and sizing, cutting, and installing safety glass is professional work, not a job to improvise with hardware-store tools.
Frequently Asked Questions
Not through normal glass recycling. The bonded plastic interlayer has to be separated from the glass first, which needs specialized processing that most curbside programs do not offer. That is different from plain annealed glass, which many facilities take directly.
Quality PVB and EVA interlayers are formulated to stay clear for decades, but a poor lamination or a compromised edge can let moisture reach the interlayer and cause a hazy, milky halo creeping in from the edge. That edge delamination is a workmanship and sealing issue, and it is repaired by replacing the affected pane, not by cleaning it.
A common architectural laminated unit runs around 6.4 millimeters overall, built from two roughly 3-millimeter glass plies with a 0.76-millimeter PVB interlayer between them. Security and impact builds go much thicker by adding plies and stepping up the interlayer.
Standard laminated glass is not bullet-resistant. Bullet-resistant glazing is a specialized multi-ply laminate, far thicker, often combining glass with polycarbonate layers and rated to a specific ballistic standard. Ordinary security laminate resists forced entry and impact, which is a different and lower bar than stopping a round.
Look at the edge. A laminated pane shows a faint line running through the middle of the exposed edge where the interlayer sits between the two glass plies, something a single tempered pane never has. A tempered pane, by contrast, often carries a small etched stamp in one corner noting it as safety glass.
On its own, a single laminated pane offers only modest thermal improvement over a plain pane; its strengths are safety, sound, and UV. For real thermal performance, you combine it into an insulated glass unit with a sealed air or gas gap, which is a separate feature from the lamination itself.
